Magnetizabilities with London Atomic Orbitals

Introduction

In this tutorial we will look at the calculation of (static) magnetizabilities with DIRAC. For more details about the method, see [Ilias2013].

The component $ζ_{α β}$ of the static $3 \times 3$ magnetizability tensor describes connects component $α$ of first-order induced magnetic dipole to component $β$ of the external inducing homogeneous magnetic field

m_{α}^{(1)} = \sum_{β} ζ_{α β} B_{β} = \frac{1}{2} \int {(r_{G} \times j^{B_{β}})}_{α} d τ

The first-order induced magnetic dipole is proportional to the direct product of the position vector $r_{G}$ with repect to some arbitrary (gauge) origin $G$ and the first-order induced current density $j^{B}$ . Although the static induced magnetic dipole is formally independent of the gauge-origin this does not hold true in the finite basis approximation, where excruciating slow convergence of the magnetizability with respect to basis set is typically observed. London Atomic Orbitals (LAOs), also known as Gauge Including Atomic Orbitals (GIAOs), remove any reference to the arbitrary gauge origin by shifting the gauge origin to the centers of individual basis functions and effectively cure both problems.

Example: $N F_{3}$ 

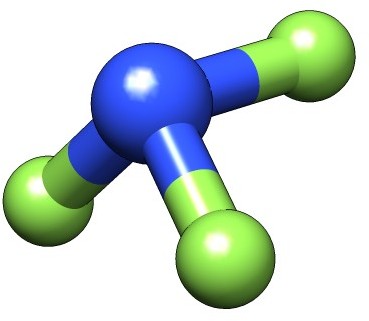

We shall illustrate these features using the nitrogen trifluoride molecule.

The molecular input file NF3.mol uses the experimental geometry and automatic symmetry detection.

INTGRL
NF3, exp.geom
daug-cc-pVQZ
C   2              A
        7.    1
N      0.000000000        0.0000000000        0.0000000000
LARGE BASIS aug-cc-pVDZ
        9.    3
F1     0.0000000000        .0000000000        1.3676000000
F2     1.3385030000       0.0000000000        -.2806030000
F3     -.3455290000       1.293136000         -.2806030000
LARGE BASIS aug-cc-pVDZ
FINISH

Upon input one of the nitrogen atom is at the origin with one of the N-F bonds aligned with the z-axis. DIRAC detects the full symmetry $C_{3 v}$ . but uses the Abelian subgroup $C_{s}$ .

Full group is:  C(3v)
Represented as: Cs

   * The point group was generated by:

      Reflection in the xz-plane

The molecule is furthere centered at the center of mass with the $C_{3}$ -axis aligned with the z-axis; this is seen from the xyz-file given in the output

  Cartesian coordinates in XYZ format (Angstrom)
  ----------------------------------------------

    4

N      0.0000000000   0.0000000000  -0.4867240526
F      1.2258552840   0.0000000000   0.1195832809
F     -0.6129277655   1.0616218022   0.1195819988
F     -0.6129277655  -1.0616218022   0.1195819988

Generating the HF wave function

We first run a Hartree-Fock calculation to generate orbitals and corresponding energies using scf.inp

**DIRAC
.TITLE
NF3
.WAVE F
.ANALYZE
**INTEGRALS
*READIN
.UNCONT
**WAVE FUNCTIONS
.SCF
*SCF
.CLOSED SHELL
34
**ANALYZE
.MULPOP
*END OF

and the command:

pam --inp=scf --mol=NF3 --outcmo

You may notice in the output that DIRAC will center and rotate the molecule. It detects the full $C_{3 v}$ symmetry, but will run the calculation in the lower $C_{s}$ symmetry, with reflection in the xy -plane, with the $C_{3}$ rotation around the x -axis.

Magnetizabilities: first attempt

We first calculate the magnetizability using the input file cgo.inp

**DIRAC
.TITLE
NF3
.PROPERTIES
**GENERAL
.RKBIMP
**HAMILTONIAN
.URKBAL
**INTEGRALS
*READIN
.UNCONT
**WAVE FUNCTIONS
.SCF
*SCF
.CLOSED SHELL
34
**PROPERTIES
.MAGNET
*NMR
.USECM
*END OF

where the (common) gauge origin has been set to the center of mass using the .USECM keyword. Notice that we use .RKBIMP (? .RKBIMP ) to convert our molecular coefficients from restricted to unrestricted kinetic balance (RKB $\to$ UKB), the former employed for the generation of orbitals, and the latter employed for the response calculations, indicated by .URKBAL. This corresponds to the use of simple magnetic balance. The calculation is run using:

pam --inp=cgo --mol=NF3 --incmo

and gives the total magnetizability tensor

                                 Bx                  By                  Bz


            Bx        -6.311410457817     -0.000000000000     -0.000004485788
            By        -0.000000000000     -6.311410738039     -0.000000000000
            Bz         0.000000339879     -0.000000000000     -6.753534842323

here reported in atomic units $e^{2} a_{0}^{2} / m_{e}$ , corresponding to 7.89104 $\cdot 10^{- 29}$ J/T.

Magnetizabilities using LAOs

We now activate LAOs using the input file lao.inp

**DIRAC
.TITLE
NF3
.PROPERTIES
**GENERAL
.RKBIMP
**HAMILTONIAN
.URKBAL
**INTEGRALS
*READIN
.UNCONT
**WAVE FUNCTIONS
.SCF
*SCF
.CLOSED SHELL
34
**PROPERTIES
.MAGNET
*NMR
.LONDON
*END OF

which gives the total magnetizability tensor

                                 Bx                  By                  Bz


            Bx        -5.215860172448      0.000000000000     -0.000000702830
            By         0.000000000000     -5.215856642085     -0.000000000000
            Bz         0.000002183587     -0.000000000000     -4.570158593223

which is markedly different from the CGO. The question now is: Which result is ‘best’ ? From microwave spectroscopy (see [Stone1969]) the magnetizability anisotropy, defined as

ζ_{a n i} = ζ_{⊥} - ζ_{∥}

has been found to be -0.63 $(\pm 0.32) e^{2} a_{0}^{2} / m_{e}$ . With CGO and LAOs we obtain +0.4421 and -0.6457 $e^{2} a_{0}^{2} / m_{e}$ , respectively, clearly favoring the LAO calculation. However, it very often happens that one gets the right answer for the wrong reason, so let us investigate the gauge-origin independence of the result as well as basis set convergence.

Gauge-origin dependence

To investigate gauge-origin dependence we do a CGO and LAO calculation with the gauge origin placed along the $C_{3}$ axis:

**DIRAC
.TITLE
NF3
.PROPERTIES
**GENERAL
.RKBIMP
**HAMILTONIAN
.URKBAL
.GO ANG ! gauge origin in Angstrom
0.0 0.0 10.0
**INTEGRALS
*READIN
.UNCONT
**WAVE FUNCTIONS
.SCF
*SCF
.CLOSED SHELL
34
**PROPERTIES
.MAGNET
*NMR
*END OF

Please note that when shifting the gauge origin in this manner you should limit the gauge origin to symmetry-independent points, that is, you should stay on symmetry elements like the xz mirror plane in this case. The CGO calculation now gives

                                 Bx                  By                  Bz


            Bx      -134.461054695468     -0.000000000000     -0.000016502340
            By        -0.000000000000   -134.460090498565     -0.000000000000
            Bz         0.000020326071     -0.000000000000     -6.753534831381

We see that the parallel component $ζ_{∥}$ is unchanged, whereas the perpendicular component $ζ_{⊥}$ is dramatically different. With LAOs we get

                                 Bx                  By                  Bz


            Bx        -5.212082011822      0.000000000001     -0.000043469240
            By         0.000000000001     -5.211342371176     -0.000000000001
            Bz         0.000023006138     -0.000000000001     -4.570544657380

where the numerical differences with respect to the original calculation is below the convergence threshold of the linear response calculation. We can therefore see that the use of LAOs removes the gauge dependence in the finite basis approximation.

Basis-set convergence

The basis set convergence is illustrated by the following table, taken from [Ilias2013], showing CGO(LAO) magnetizabilities (in $e^{2} a_{0}^{2} / m_{e}$ ) for a wide range of basis sets.

Basis	$ζ_{∥}$	$ζ_{⊥}$	$ζ_{i s o}$	$ζ_{a n i}$
DZ	-14.83 (-4.27)	-9.78 (-4.87)	-11.47 (-4.67)	+5.04 (-0.60)
TZ	-7.88 (-4.36)	-6.52 (-4.96)	-6.97 (-4.76)	+1.37 (-0.60)
QZ	-5.65 (-4.43)	-5.54 (-5.04)	-5.58 (-4.83)	+0.11 (-0.61)
aug-DZ	-6.75 (-4.57)	-6.31 (-5.22)	-6.46 (-5.00)	+0.44 (-0.65)
aug-TZ	-5.01 (-4.64)	-5.42 (-5.24)	-5.28 (-5.04)	-0.41 (-0.60)
aug-QZ	-4.70 (-4.64)	-5.26 (-5.24)	-5.08 (-5.04)	-0.56 (-0.60)
d-aug-DZ	-6.37 (-4.57)	-6.18 (-5.22)	-6.24 (-5.00)	+0.19 (-0.65)
d-aug-TZ	-5.01 (-4.69)	-5.45 (-5.27)	-5.31 (-5.08)	-0.44 (-0.58)
d-aug-QZ	-4.76 (-4.68)	-5.31 (-5.28)	-5.13 (-5.08)	-0.55 (-0.60)

The basis set convergence is seen to be dramatically different, again clearly in favour of LAOs.
